Professional Performance Assessment

This solar starter kit delivers impressive 500Wh daily energy generation capacity, making it ideal for RV enthusiasts, off-grid cabins, and emergency backup power systems. The standout feature is the 22.5% solar cell efficiency rating, which surpasses standard market offerings by 1.3 percentage points. This efficiency advantage translates to more power generation per square foot of panel surface, maximizing your investment in limited installation spaces. Each unit undergoes rigorous electroluminescence testing at the manufacturing facility, eliminating hidden microcracks that could compromise long-term performance and ensuring optimal power output from day one.

Technical Specifications Breakdown

Power Generation Capacity: The 500Wh daily output represents the average production under standard test conditions. In optimal sunlight conditions with 5-6 peak sun hours, users can expect consistent performance throughout the year, with seasonal variations based on geographic location and weather patterns.

Charge Controller Technology: The Wanderer 30A PWM charge controller employs pulse width modulation technology to efficiently regulate charging voltage and prevent battery overcharge. The 30-amp capacity provides adequate headroom for system expansion, supporting up to 400 watts of total solar panel capacity when adding additional modules.

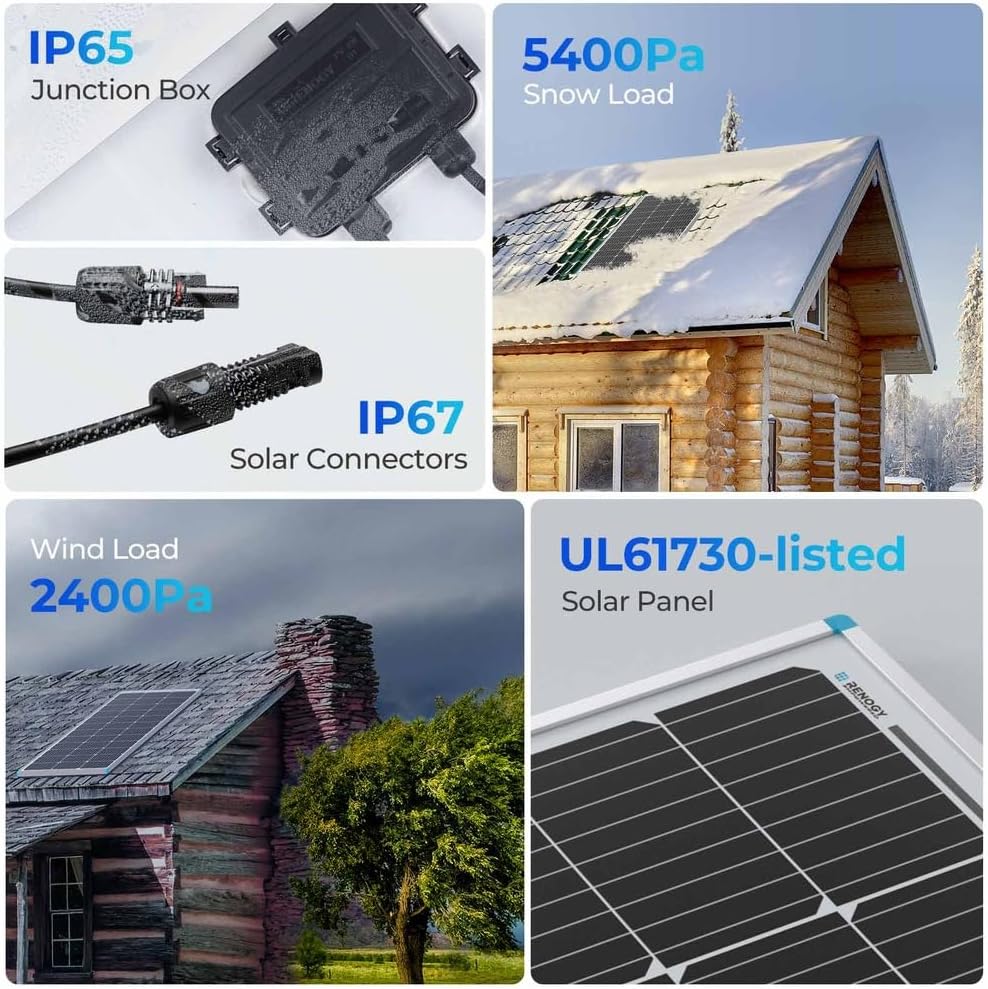

Structural Durability: Certified to withstand extreme environmental conditions including 2400 Pascal wind loads and 5400 Pascal snow loads, this system meets stringent UL 61730, CSA C22.2#61730, IEC 61730, and IEC 61215 safety standards. The IP65-rated junction box and IP67-rated solar connectors provide complete protection against dust ingress and water immersion.

Installation & Setup Tutorial

Step 1 – Location Selection: Choose a south-facing location (north-facing in southern hemisphere) with minimal shading between 9AM-3PM. Roof mounting, ground mounts, or portable frames all work effectively. Ensure 15-degree minimum tilt angle for optimal sun exposure and rainwater drainage.

Step 2 – Panel Mounting: Secure panels using appropriate mounting hardware based on surface type. Maintain 2-4 inch clearance beneath panels for airflow cooling. Verify all mounting bolts are torqued to manufacturer specifications to withstand wind loads.

Step 3 – Electrical Connection: Connect solar panel output to charge controller solar input terminals, observing correct polarity. Connect battery bank to charge controller battery terminals before connecting solar panels to prevent voltage spikes. Use properly sized wire gauge based on cable run length to minimize voltage drop.

Step 4 – Bluetooth Configuration: Install optional Renogy BT-1 Bluetooth Module into the RS232 port on the charge controller. Download the Renogy DC Home application to your smartphone. Pair device via Bluetooth and configure battery type settings for optimal charging profiles.

Step 5 – System Testing: Monitor voltage readings during daylight hours to confirm proper power generation. Verify charge controller displays appropriate charging status and that battery voltage increases during sunny periods.

Comparative Market Analysis

Compared to traditional 20% efficiency panels, this 22.5% efficiency rating generates approximately 12.5% more power from identical panel dimensions. Against MPPT charge controllers, PWM technology offers simpler operation at lower cost, making it ideal for starter systems where budget considerations matter. The 10-year material warranty exceeds the 5-year industry standard for entry-level kits, while the 25-year power output warranty matches premium tier offerings. Battery compatibility spanning AGM, Gel, Flooded, and Lithium chemistries provides flexibility unavailable in controller-specific systems that lock users into single battery technologies.

Common Questions & Answers

Q: What can 500Wh daily output power?
A: This capacity can run LED lighting for 8-10 hours, charge multiple smartphones and laptops, operate a 12V refrigerator for 6-8 hours, or power a combination of smaller devices. Actual runtime depends on device efficiency and battery capacity.

Q: Can I expand this system later?
A: Yes, the 30A controller supports up to 400W total solar capacity. You can add identical panels or different wattage panels as long as total array wattage stays within controller limits and voltage specifications match.

Q: Which battery type works best?
A: Lithium batteries offer longest lifespan and deepest discharge capability. AGM batteries provide maintenance-free operation at moderate cost. Flooded lead-acid batteries are most economical but require periodic maintenance. Configure controller settings to match your chosen chemistry.

Q: How does remote monitoring work?
A: The optional BT-1 Bluetooth module plugs into the controller’s RS232 port, enabling wireless connection to the Renogy DC Home app. Monitor real-time voltage, current, power generation, and receive alerts for system issues from your smartphone within Bluetooth range.
